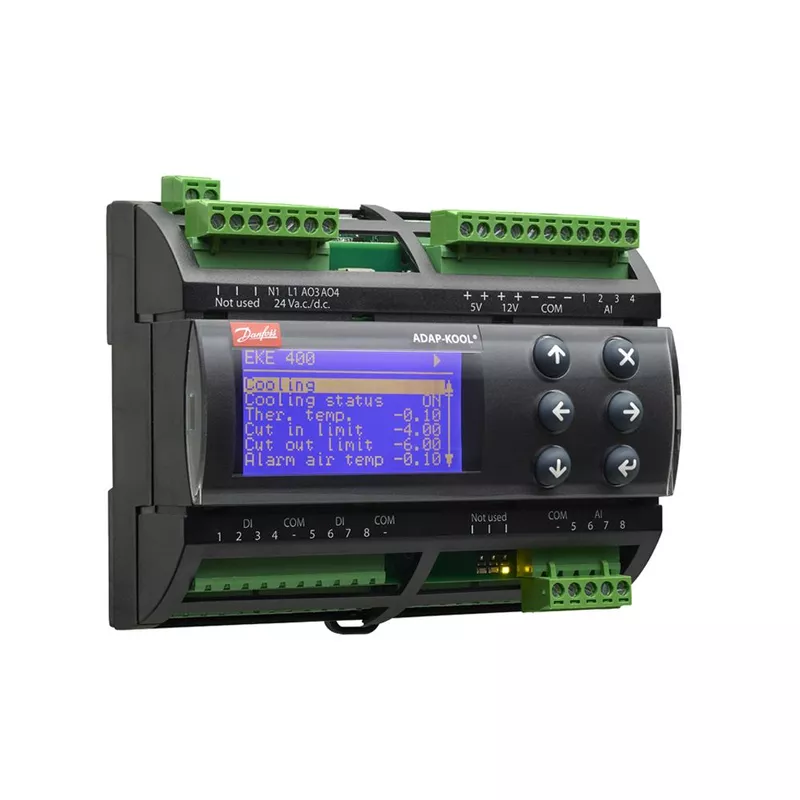

080G5004 - Electronic valve control, EKE 400
Electronic valve control, Application area: Direct Expansion evaporator; Flooded evaporator,
Function: Cooling, Hot Gas Defrost, Communication type: RS485; MODBUS,
Product features: Buzzer; Real time clock.
Function: Cooling, Hot Gas Defrost, Communication type: RS485; MODBUS,
Product features: Buzzer; Real time clock.
Contact us for current lead time.
Product Details
Buzzer | Yes |
Quantify per Packing Format | 12 pc |
REACH Candidate List Substances | Lead (CAS no. 7439-92-1) Lead titanium zirconium oxide (CAS no. 12626-81-2) Potassium nonafluoro-1-butanesulfonate (CAS no. 29420-49-3) 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol (CAS no. 119-47-1) Cadmium (CAS no. 7440-43-9) |
Real Time Clock | Yes |
Documents
Specifications
Product Features
- Gross weight:0.642 Kilogram
- Net weight:0.569 Kilogram
- Volume:2.799 Liter
- EAN:5702428546195
- Type:EKE 400
- Product Name Description:Evaporator and room control
- 1 Primary battery SUM weight Kg:0.014
- 1 Primary battery weight Kg:0.014
- Ambient temperature range [°C] [max]:60 °C
- Ambient temperature range [°C] [min]:-20 °C
- Analog inputs (AI) [pc]:8 pc
- Analog inputs type:Voltage or Current
- Analog outputs (AO) [pc]:4 pc
- Application area:Direct Expansion evaporator Flooded evaporator
- Approval:CE cURus
- Battery type or Name:Lithium coin cell (CR1620)
- CE mark:Yes
- China RoHS compliance:Out of scope
- Communication type:MODBUS RS485
- Connector kit and batteries included:Yes
- Digital inputs (DI) [pc]:8 pc
- Digital outputs (DO) [pc]:8 pc
- Display - option:On front. Option: MMIGRS2
- EEE category:5 small equipment (any external dimension < 50 cm)
- Enclosure rating IP:IP20
- EU RoHS compliance:Yes
- Frequency [Hz]:50/60 Hz
- Function:Cooling
- In scope of WEEE:No
- Mounting method:DIN rail
- Number of Sensor inputs:8 pc
- Power consumption [VA]:17 VA
- Power consumption [W]:10 W
- Product features:Buzzer Real time clock
- Programming tools:CoolSelector
- SCIP dossier no.:3a3d2e4a-2484-4c5d-82f0-4ddc17dad4d2
- SCIP dossier product name:EKE 4x0 Evap. Controller.
- Sensor type:Temperature sensor Pressure sensor
- Supply voltage [V] AC [max]:28 V
- Supply voltage [V] AC [min]:21 V
- Supply voltage [V] DC [max]:60 V
- Supply voltage [V] DC [min]:20 V
- Temp. sensor support:Pt 1000
- UL mark:Yes
